35 Row Burner Tray Industrial Grade Boiler Heating Replacement Component

Product Details

Place of Origin: China

Brand Name: Vanka

Certification: ISO9001：2015,CE

Payment & Shipping Terms

Minimum Order Quantity: 50 Sets

Price: $0.3-$0.6 Sets

Packaging Details: 570x340x165

Delivery Time: 30 work days

Payment Terms: L/C,T/T,Western Union,MoneyGram

Supply Ability: 20000 Set/Sets per Month

Get Best Price

Product Details

Product Description

Highlight:

Durability:	Corrosion Resistant	Max Temperature:	80°C
Productname:	Gas Boiler Accessories	Compatible With:	Natural Gas And LP Gas
Weight:	Depends On Specific Accessory	Gas Type:	NG LPG
Warranty:	1 Year Manufacturer Warranty	Applicable Use:	Hotel, Household

Durability:	Corrosion Resistant
Max Temperature:	80°C
Productname:	Gas Boiler Accessories
Compatible With:	Natural Gas And LP Gas
Weight:	Depends On Specific Accessory
Gas Type:	NG LPG
Warranty:	1 Year Manufacturer Warranty
Applicable Use:	Hotel, Household

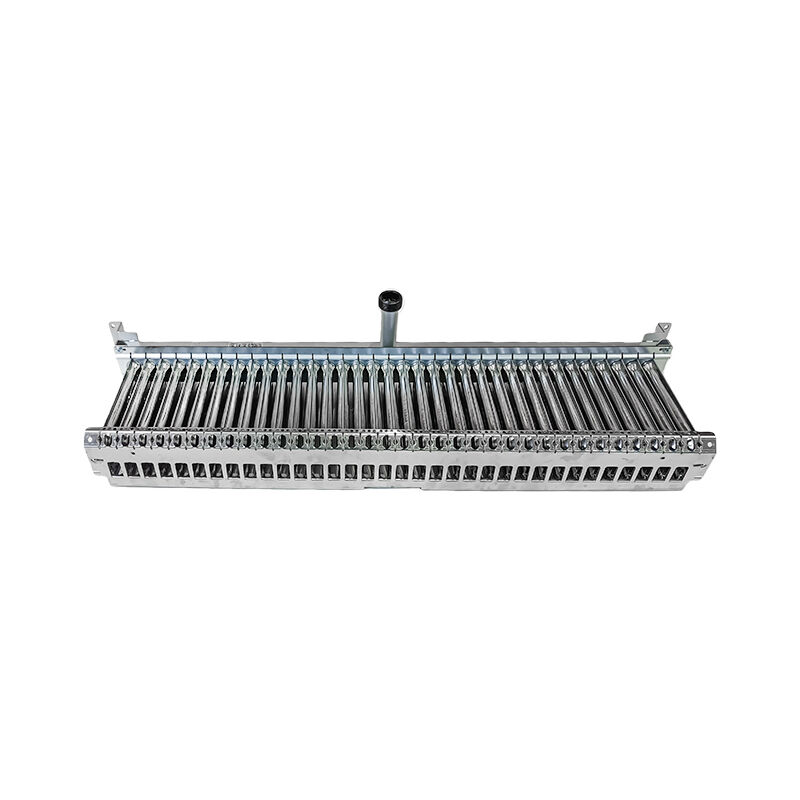

35 Row Burner Tray Industrial Grade Boiler Heating Replacement Component

35 Row Burner Tray Industrial Grade Boiler Heating Replacement Component

The 35 Row Burner Tray represents the pinnacle of industrial combustion engineering, designed specifically for mega-capacity boiler systems where extreme thermal output and relentless reliability are non-negotiable. This component is the heart of large-scale heating, power generation, and industrial processing plants, engineered to deliver unmatched performance in the most demanding operational environments.

Key Features

Ultra-High 35-Row Matrix – The industry's highest density configuration provides up to 40% greater active combustion surface area versus standard trays, enabling unprecedented heat flux and rapid system response.

Forged for Extreme Duty – Constructed from Grade 310H Stainless Steel or Inconel-alloy variants, engineered to withstand sustained temperatures exceeding 1150°C and resist thermal fatigue, creep, and oxidation.

Intelligent Air-Fuel Stratification – Incorporates multi-stage venturi & baffle technology that ensures optimal stoichiometric mixing across all 35 rows, eliminating cold spots and maximizing combustion efficiency (>99.8%).

Global Project Support – Backed by a dedicated engineering team offering CFD simulation, combustion analysis, and on-site commissioning support for turnkey projects.

Technical Specifications

Parameter	Specification
Product Class	Industrial Mega-Capacity Burner Tray
Row Configuration	35 rows, ultra-high-density staggered array
Primary Applications	Utility Power Boilers, Large Industrial Steam Generators, Cogeneration (CHP) Plants, District Heating Hubs
Fuel Flexibility	Natural Gas / Heavy Oil / Syngas / Dual-Fuel & Tri-Fuel Configurations
Thermal Capacity Range	5 MW – 50 MW+ (Scalable per project design)
Core Material Options	310H Stainless Steel / Inconel 601/625 / Custom High-Temp Alloys
Design Pressure	Up to 4.0 MPa (580 PSI)
Connection Standard	ANSI B16.5 / DIN / JIS Flanges (Customizable)
Typical Dimensions	800–1500 mm (Length) × 400–600 mm (Width) – Fully Customizable

Frequently Asked Questions

Q1: What scale of operation is this 35-row tray designed for?
A1: It is engineered for utility-scale and heavy industrial applications, including power plants (>10MW), large industrial complexes, refinery heaters, and major district energy systems requiring extreme reliability and output.

Q2: Can this component be integrated into existing boiler retrofits or must it be part of a new build?
A2: It is designed for both. We provide full retrofit engineering packages, including 3D laser scanning of existing combustion chambers, CFD modeling for integration analysis, and custom fabrication to match legacy flange and mounting layouts.

Q3: What is the lead time for a custom project of this scale?
A3: For engineered-to-order projects: 8–12 weeks from final design approval to shipment. This includes material procurement, precision fabrication, welding, NDT testing, and pre-shipment inspection. Expedited options are available.

Q4: What technical support do you provide during commissioning?
A4: We offer tiered support packages: Basic (documentation & remote guidance), Standard (onsite supervisor for 3–5 days), and Premium (full commissioning team including combustion tuning and operator training).
